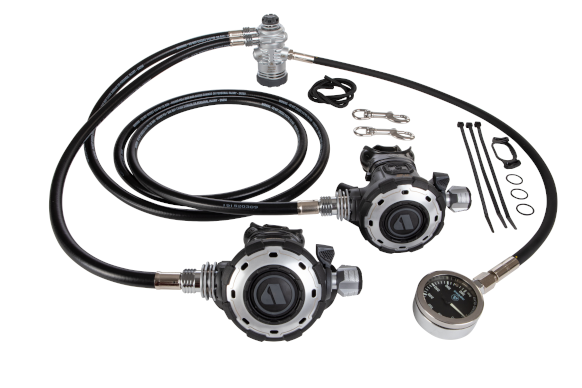

Apeks MTX-RC Single Cylinder Set

Single Cyl MTX-RC Set


The MTX-RC Single Cylinder Long Hose set is designed for the diver that prefers a long hose configuration on a single cylinder. It is also the perfect set-up for the recreational diver looking to transition into twinset diving in the future, as the addition of another first stage creates a twinset regulator configuration.



Features & Benefits

First stage

First Stage Satin plated brass body with heat exchanging ribs for maximum thermal performance.Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.Ribbed diaphragm clamp for improved heat exchange in cold water conditions.Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.5 x medium pressure ports, 4 mounted on a rotating turret for improved hose orientation2 x angled high pressure ports for optimal hose routing and fitting of transmitters.Double swivel hose for greater freedom of movement and comfort.Easy to grip DIN hand-wheel or over-moulded yoke hand-wheel, only requires one hand to release.DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively.Tested for Octopus use - EN250A to 60 metres cold water.Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.

Second stages

2nd Stages Protective bumpers to protect the second stage from impacts and scratches in the most vulnerable places.Ergonomic and simple to use venturi lever.Oversize breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.Large purge button.Reversible second stage for either a left or right hand gas supply configuration.A heat exchanger (patented) dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breathe.Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.Comfo-bite mouthpieceFlexible nylon braided hose, which has better cold water performance than traditional rubber hose.Designed and manufactured in the UK.No single use plastic in the packaging

Specifications

Weight DIN – 1.193 kg (2.63lbs)Max working pressures 1st StageDIN - 300 bar (4351 psi)Yoke - 232 bar (3365 psi)2nd Stage9-10 bar (131-145 psi)Certified to: EN250ATemp range 0.5°C - 55°CConnections DIN and YokeNitrox/Oxygen compatible Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.

Prices
20% discount


Single Cyl MTX-RC Set

RRP  70,490 ฿
